The minimum order quantity is 1 unit. Volume discounts available for 5+ units.

Which emission standards do you support?

Euro II through Euro VI. We configure to match your country requirements.

What is the warranty period?

Standard 12-month or 30,000 km warranty covering upper structure. Extended packages available.

Can you customize for special requirements?

Yes. Full customization including chassis, LHD/RHD, paint colors, logos, and OEM/ODM.

What is the delivery time?

Standard: 15-25 working days. Custom: 30-45 working days. Popular models in stock.

Which shipping methods?

Sea freight, rail, road transport. FOB, CIF, CFR, DDP terms available.

Remote technical guidance, video troubleshooting, complete spare parts supply chain.

Compatible chassis brands?

Sinotruk HOWO, Shacman, Dongfeng, FAW, Foton, ISUZU, Mercedes-Benz.

How to get a quotation?

Contact via website form or email. Specify product type, configuration, chassis preference, destination country.

ISO 9001, CE, CCC, EAC certified. High-tech enterprise with invention patents.

GLOBAL SPECIAL VEHICLE LEADER

Professional Special Vehicle Exporter

Name: 30-40 cubic chemical liquid transport truck
Brand: Shenbai
SKU: 30-40-cubic-chemical-liquid-transport-truck
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

EXPLORE PRODUCTS → REQUEST QUOTE

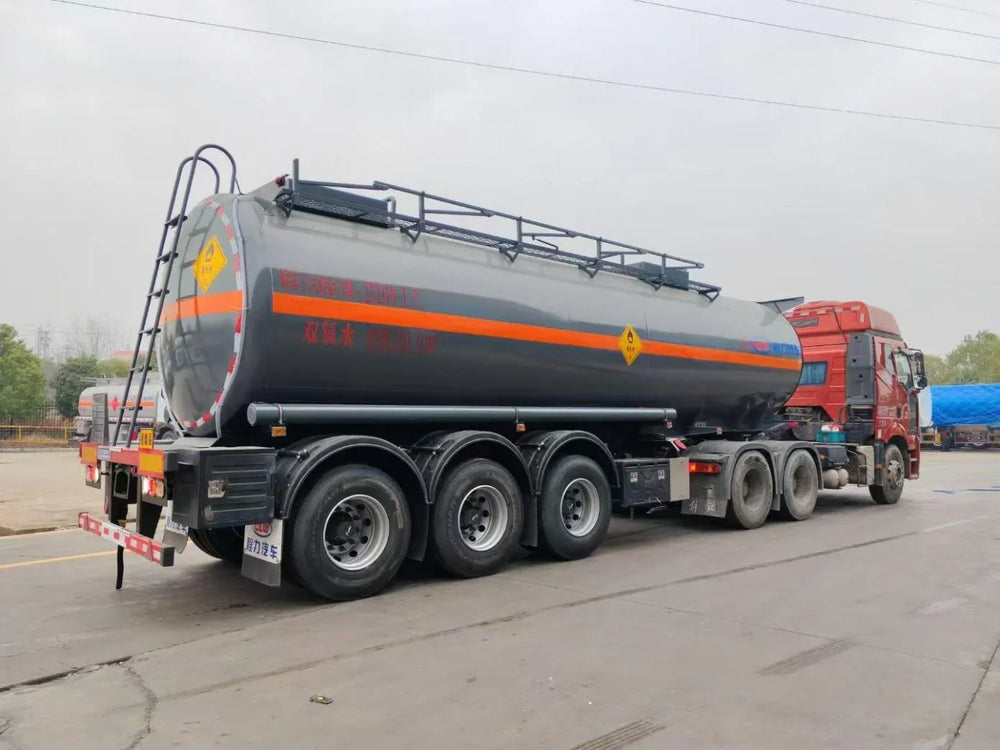

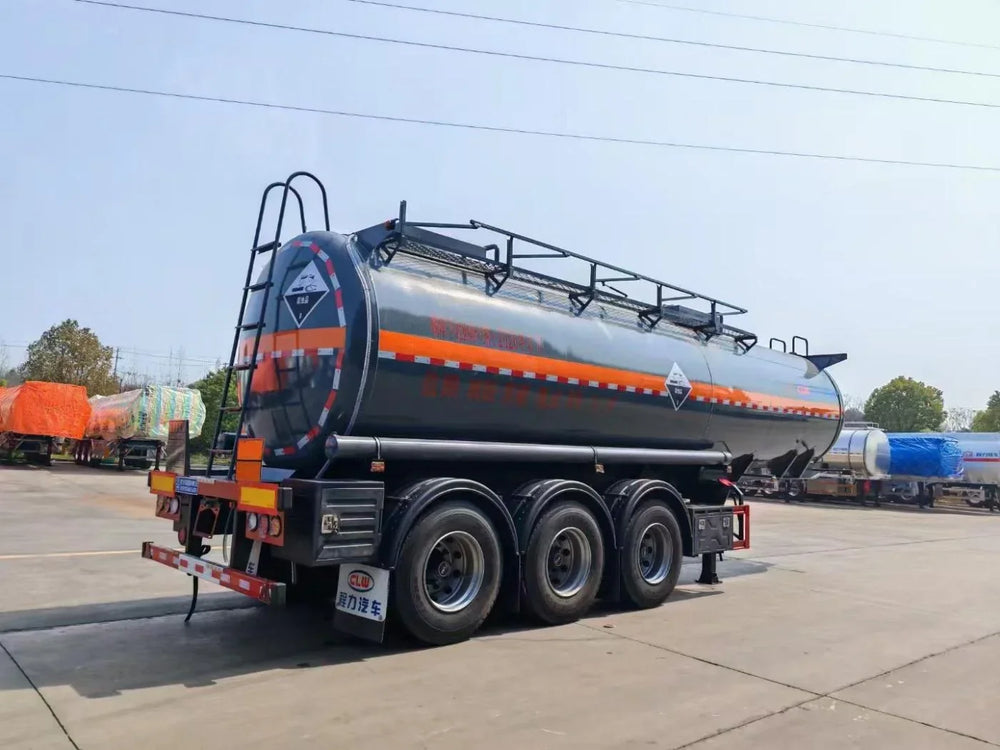

30-40 cubic chemical liquid transport truck

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Maximize your liquid transport efficiency with the Shenbai AUTO Aluminum Alloy Tanker Semi-Trailer, featuring an impressive 30-40 m³ capacity – the ideal solution for large-volume chemical and fuel transportation. This high-capacity semi-trailer combines exceptional payload capacity (34,000 kg) with lightweight aluminum construction, ensuring optimal fuel efficiency and reduced operating costs. Built with a robust 3-axle design and compliant with international standards, it delivers superior performance for long-haul operations. Discover how our tanker can enhance your logistics fleet – contact us today for a detailed quotation and technical specifications!

30–40 Cubic Meter Chemical Liquid Transport Truck – Key Specifications

Parameter	Specification
Vehicle Type	Chemical Liquid Tanker / Flammable Liquid Transport Vehicle
Chassis Options	SINOTRUK HOWO, SHACMAN X3000, Dongfeng Tianlong, FAW Jiefang
Drive Configuration	8×4 / 6×4

Dimensions & Weight

Parameter	Specification
Overall Dimensions (L×W×H)	10,500 – 12,500 × 2,500 × 3,550 – 3,980 mm
Wheelbase	4,600+1,350+1,350 mm / 1,800+4,575+1,400 mm (varies)
GVWR (Total Mass)	31,000 – 40,000 kg
Curb Weight (Kerb Mass)	8,300 – 12,000 kg
Payload Capacity (Rated Load)	16,800 – 28,000 kg

Engine & Drivetrain

Parameter	Specification
Engine Options	WEICHAI, CUMMINS, MAN
Max Horsepower	340 – 430 HP
Emission Standard	Euro II – VI (configurable)
Transmission	9-speed / 10-speed / 12-speed manual
Fuel Type	Diesel

Chassis & Axles

Parameter	Specification
Axles	3 – 4
Front Axle	7.5T HD
Rear Axle	13T – 16T
Tire Specification	12R22.5 / 13R22.5
Tire Count	12 + 1 spare
Suspension	Leaf spring / Air suspension (optional)
Brake System	Dual-line ABS / EBS, WABCO relay valve

Tank & Safety Equipment

Parameter	Specification
Effective Tank Volume	30 – 40 m³ (30,000 – 40,000L)
Tank Material	Carbon steel (Q235/Q345) / Stainless steel / Aluminum alloy
Tank Wall Thickness	4 – 8 mm
Compartments	1 – 5 compartments (customizable)
Transport Media	Chemicals, acids, alkalis, gasoline, diesel, methanol, ethanol
Hazard Class	Class 3 (Flammable Liquid) / FL-type
Safety Features	Speed limiter (80 km/h), GPS tracking, front exhaust pipe, anti-static grounding strap, emergency shut-off valve, anti-wave baffles, explosion-proof manhole covers
Exterior Markings	Reflective tape + hazard diamond signs
