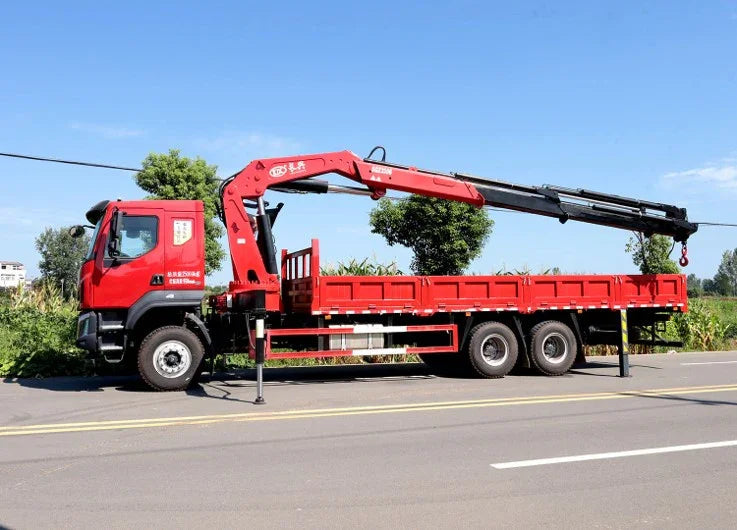

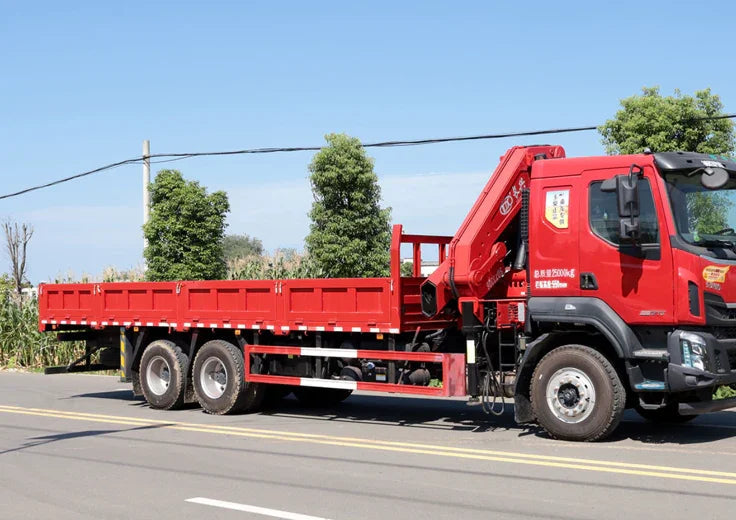

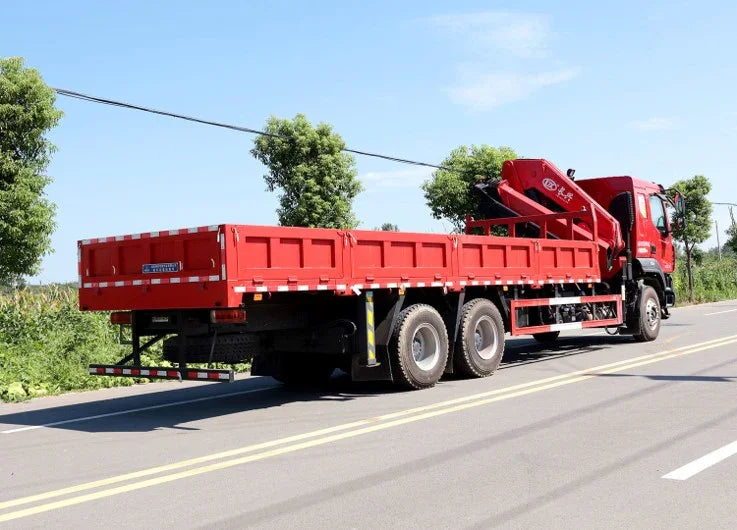

Dongfeng 6×4 10T Knuckle Boom Crane
Request a Quote Now
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
Dongfeng |
|
Chassis Model |
DFV1253GSZ6D |
|
Drive Type |
Left Hand Drive 6*4 |
|
Vehicle Size(mm) |
12000*2500*3750 |
|
G.V.W(kg) |
25000 |
|
Net Weight(kg) |
16500 |
|
Engine Model |
YCS06270-60 |
|
Engine capacity |
6.234L |
|
Engine power |
270HP/199KW |
|
Emission Standard |
Euro 6 |
|
Wheelbase |
5900+1350mm |
|
Cab Capacity |
2 |
|
Transmission |
9JS119TA |
|
Front/Rear Axle |
5.5T/11.5T |
|
Tyre Size |
11.00R20 |
|
Frame |
8+5+6/300 |
|
Fuel tank |
280L |
|
Container Size |
8500 × 2450 × 550mm |
|
Crane Brand |
CX/SQZ200-4 |
|
Maximum lifting weight |
10T |
|
Quantity of telescopic arm |
4-section |
|
Working angle |
Full hydraulic, 360 ° Full rotation |
|
Maximum lifting height |
13M |
|
Working radius |
9.98M |
|
Rear outriggers |
Double-cavity telescopic square support legs |
|
3.Crane parameters |
|
|
|
|
|
|
|
