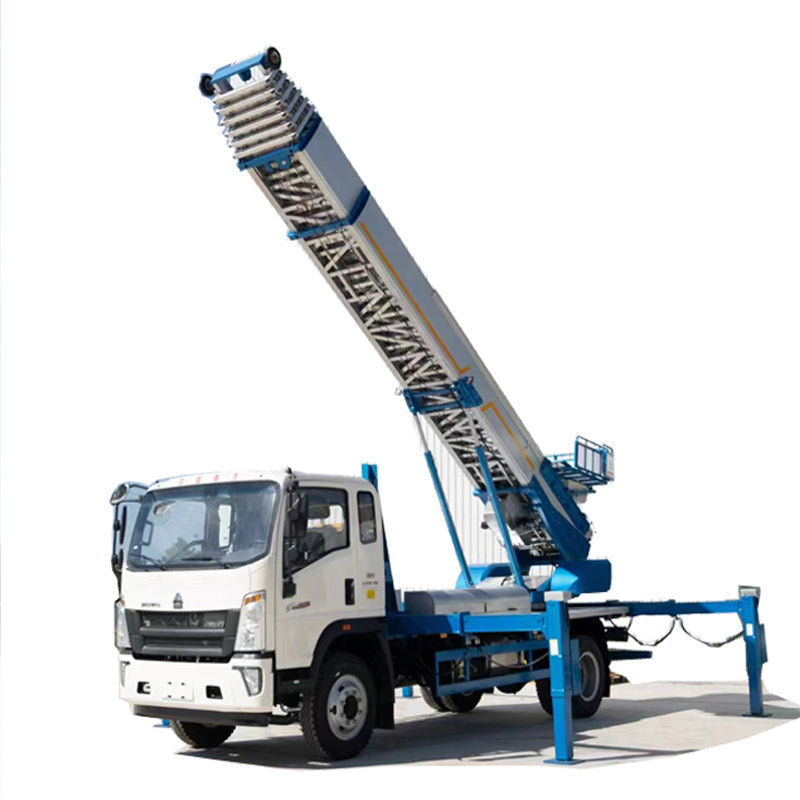

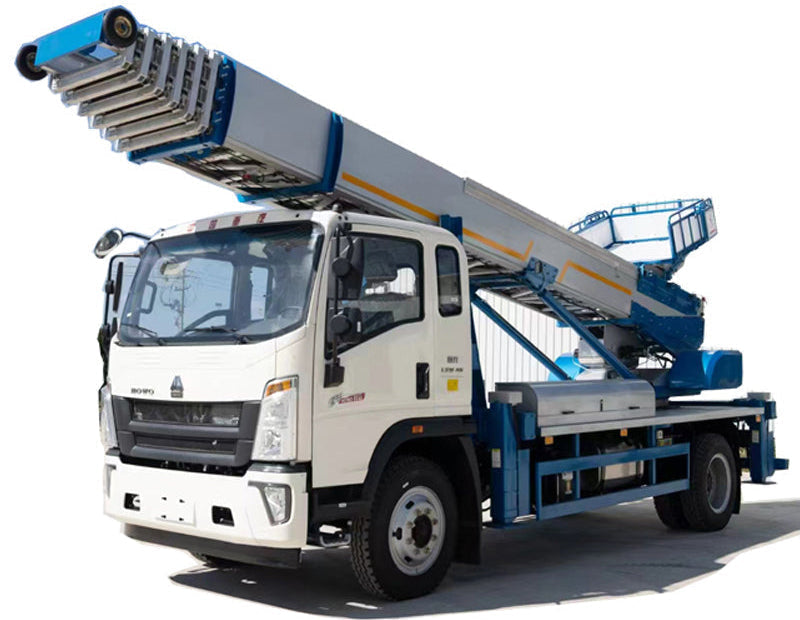

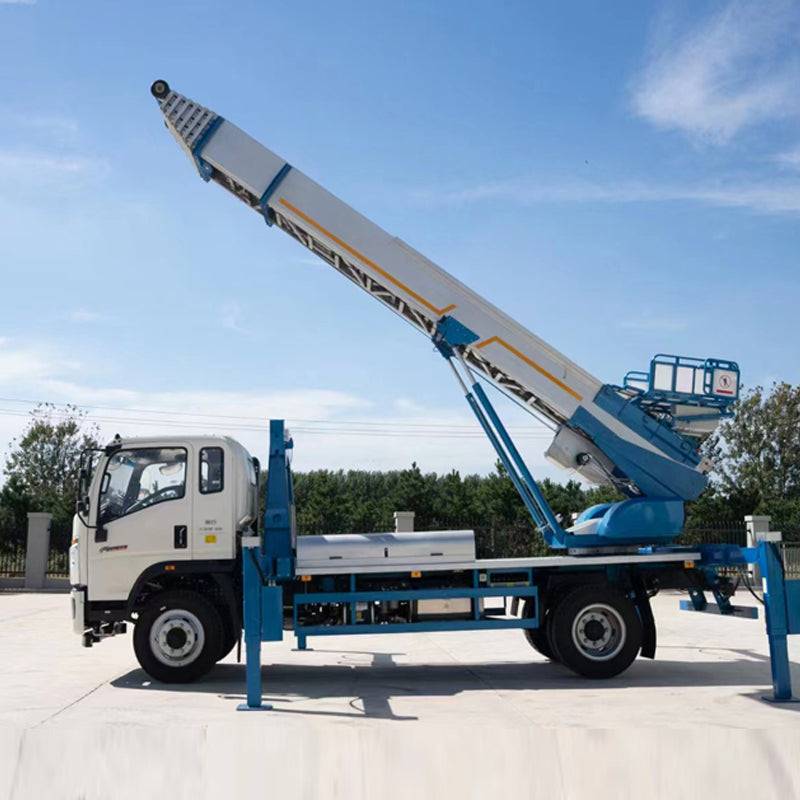

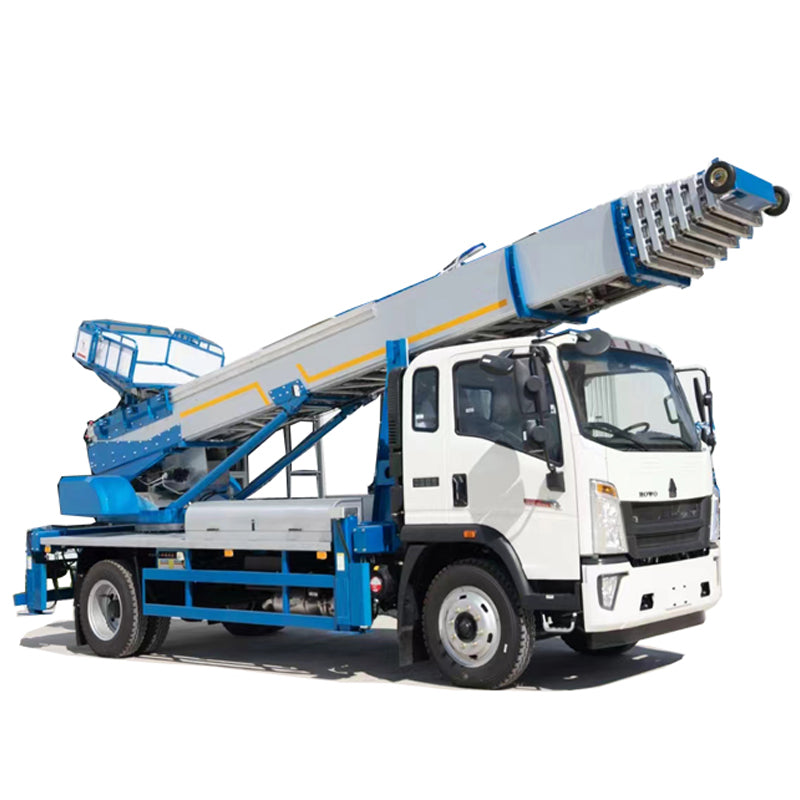

Howo 45 meters 4 x2 aerial ladder moving operation truck
Request a Quote Now
Ladder truck is a special operation vehicle that uses vehicle-mounted ladder equipment to carry materials upstairs. It has the characteristics of simple operation and easy learning, strong flexibility, wide application range, high working efficiency and good performance. aerial ladder moving vehicle Mainly used for project leasing, curtain wall construction, roof solar energy, roof waterproof operation, anti-aircraft gun, electricity, air conditioning outdoor unit installation, ship maintenance, moving company, cement sand handling, road and bridge repair, etc
|
Model : |
ZZ1107G451CD1 |
Meter count: | 45 |
| Total Weight: | 9400kg | Curbe Weight: | 9205kg |
| Size of Outter: | 8020*2380*3300(mm) | Number of axes: | three |
| WheelBase: | 4500mm | Tire Size: | 8.25R16 |
| Transmission: | 5-Speed | Tire Number: | 6 |
| Front/Rear Axle: | 2.7T/7.2T | Brake System: | Air Brake |
| Fuel Type: | Diesel | Emission Standard: | Euro 2 |
| Engine Model: | ISF3.8S3154 | Power: | 113kw/154HP |
| Displacement: | 3760ml |
Maximum speed |
100km |
| Standard Equipments: |
|
aerial ladder moving vehicle is mainly composed of frame assembly, ladder assembly, trolley assembly, turntable assembly, hoist assembly, hydraulic system assembly, electrical system assembly and so on. Four hydraulic supports extend to enhance the stability of the whole machine when the cargo is transferred. The truck can carry up to 400 kilograms of cargo at a time and can be operated by remote control for 100 meters |
